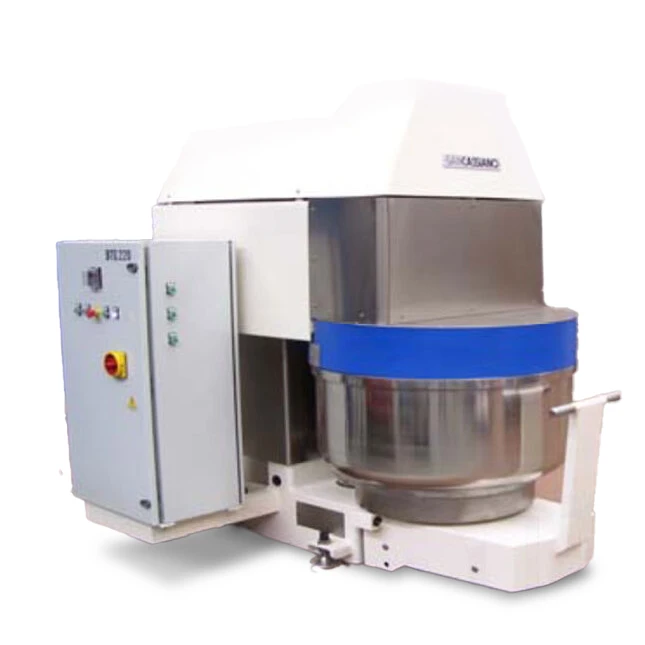

SANCASSIANO Removable Bowl Twin Arm Kneader – Series BTE

SERIES BTE 120-600

Features: Steel structure – rising head by hydraulic cylinder – bowl transmission acted by friction wheel – automatic hydraulic hooking system of bowl trolley (at the connection to the machine) and automatic descent start of the head, head descent completion by hold-to-run control – Automatic bowl release and head rise at the end of mixing with hydraulic unit and independent motorization. Stainless steel safety guard completely closed – single block kneading arms in stainless steel – bowl in stainless steel. Transmission to the kneading tools by parallel axis gearbox – self lubricating gearboxes (BTE 120 – 160) or gearboxes in oil bath (BTE 220 – 600) – control board in separate box fixed on the left side of the mixer. Different number and shape of mixing tools upon request. Recipe programmer with 5.7” touch-screen panel with the following features:

Categories: , , ,

Description

  • Possibility to program and store up to 20 recipes and 6 mixing phases per recipe
  • Automatic and manual mode
  • Request for manual ingredients addition (with the mixer head up or down) at the beginning of each phase.
  • Display of the instantaneous power and the characteristic dough curve (available with inverter purchased separately)
  • Display of total and specific energy and its graph (available with inverter purchased separately)
  • Active Protection of mechanical and electrical components (available with inverter purchased separately)
  • Display of the dough temperature (available with optional temperature sensor purchased separately) and related graph
  • Managements of alarms (codes and descriptions) not included.
  • Graph customization and pre-programmed language choice (12 languages)



BTE 120 (BOWL VOLUME 230 LT. – TOOL’S MOTOR POWER 4,5 KW)

BTE 160 (BOWL VOLUME 255 LT. – TOOL’S MOTOR POWER 5,5 KW)

BTE 220 (BOWL VOLUME 350 LT. – TOOL’S MOTOR POWER 8,0 KW)

BTE 300 (BOWL VOLUME 430 LT. – TOOL’S MOTOR POWER 11,0 KW)

BTE 400 (BOWL VOLUME 555 LT. – TOOL’S MOTOR POWER 13,0 KW)

BTE 500 (BOWL VOLUME 790 LT. – TOOL’S MOTOR POWER 15,0 KW)

BTE 600 (BOWL VOLUME 910 LT. – TOOL’S MOTOR POWER 18,0 KW)



Kneader lifted from the ground (about 85 mm) by n° 4 stainless. steel feet.
