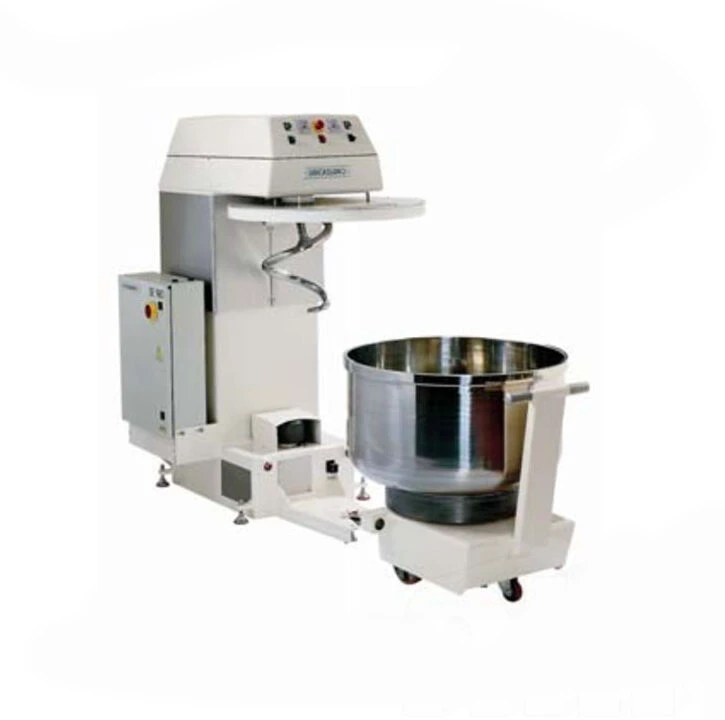

SANCASSIANO Removable Bowl Spiral Kneader – Series SE

Features: Steel structure – stainless steel spiral and bowl – vertical lifting through hydraulic cylinder – spiral driving by belts and parallel axes gearbox (version SE 80-160 without gearbox) – automatic hydraulic hooking system of bowl trolley (at the connection to the machine) and automatic descent start of the head, head descent completion by hold-to-run control. At mixing end the bowl trolley is automatically released and the head rises by hydraulic unit – bowl driven by friction wheel -stainless steel bowl cover completely closed, with plastic sealing ring. Control panel in separate box fixed on left side of mixer bodywork (for other necessities, please inform upon order). Recipe programmer with 5.7” touch- screen panel with the following features:

Description

  • Possibility to program and store up to 20 recipes and 6 mixing phases per recipe
  • Automatic and manual mode
  • Request for manual ingredients addition (with the mixer head up or down) at the beginning of each phase.
  • Display of the instantaneous power and the characteristic dough curve (available with inverter purchased separately)
  • Display of total and specific energy and its graph (available with inverter purchased separately)
  • Active Protection of mechanical and electrical components (available with inverter purchased separately)
  • Display of the dough temperature (available with optional temperature sensor purchased separately) and related graph
  • Managements of alarms (codes and descriptions) not included.
  • Graph customization and pre-programmed language choice (12 languages)



SE80 (BOWL VOLUME 140 LT.)

SE130 (BOWL VOLUME 230 LT.)

SE160 (BOWL VOLUME 250 LT.)

SE200 (BOWL VOLUME 320 LT.)

SE250 (BOWL VOLUME 360 LT.)

SE300 (BOWL VOLUME 440 LT.)

SE400 (BOWL VOLUME 575 LT.)

SE600 (BOWL VOLUME 910 LT.)

SE800 (BOWL VOLUME 1,160 LT.)
